Wind & Solar & Electric hydrogen production systems

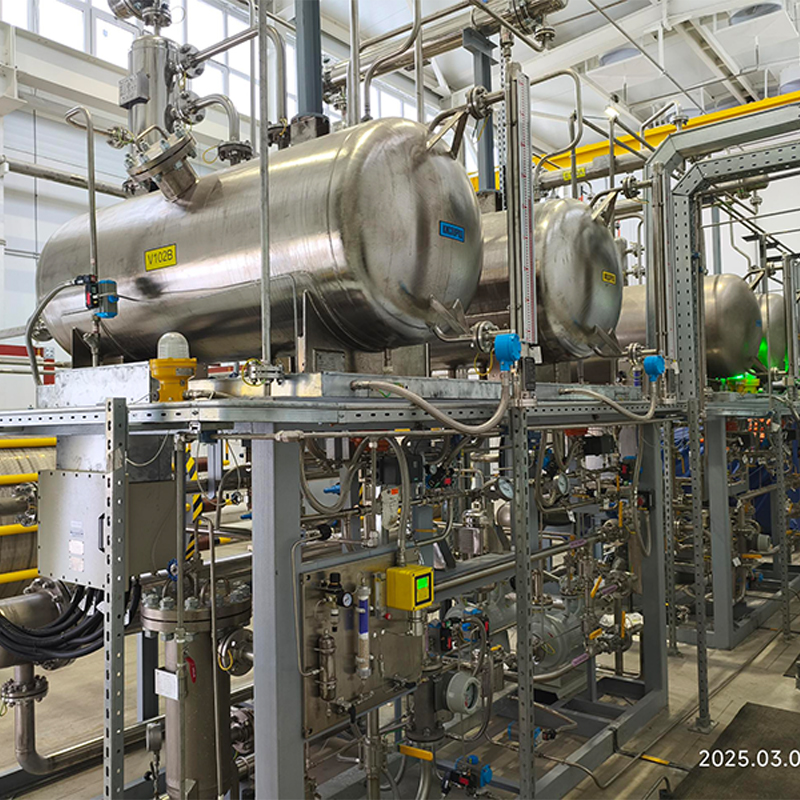

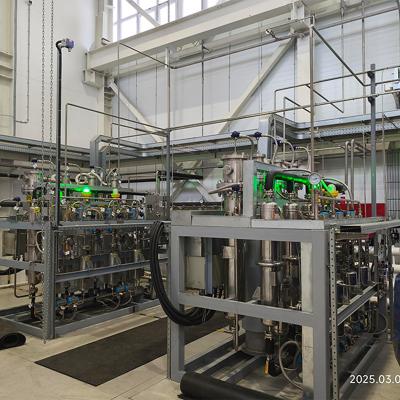

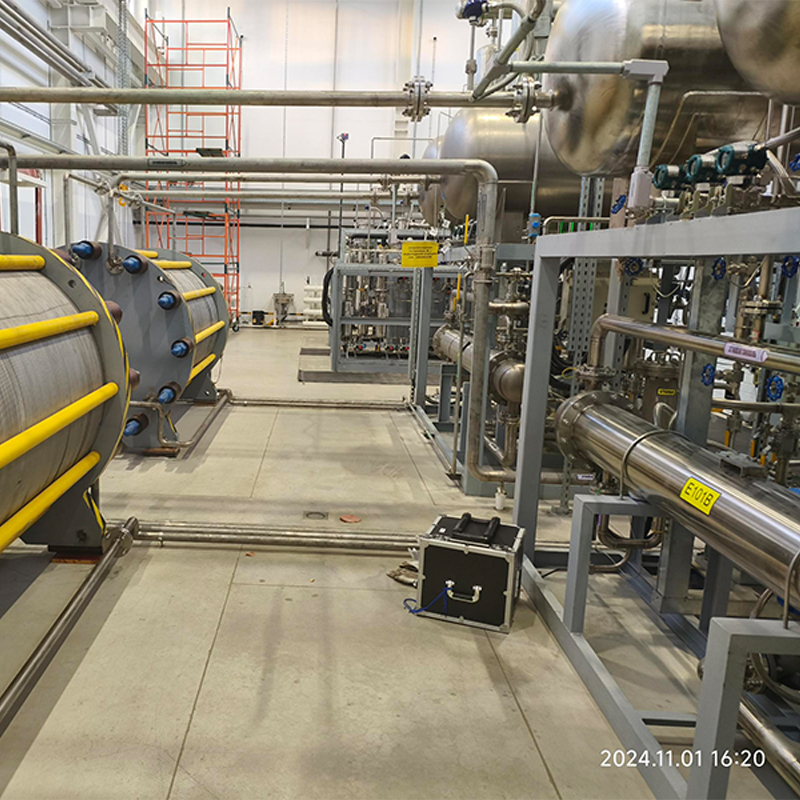

The equipment uses water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen 1 oxygen tank, to ensure the hydrogen purity. It will go through the processes such as hydrogen washing, gas I liquid separation,cooling, purifying deoxidization and dryprocess to produce high purity hydrogen.

The equipment use water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen oxygen tank, to ensure the hydrogen purity.It will go through the processes such ashydrogen washing, gas / liquid separation and cooling process to finally produce hydrogen.

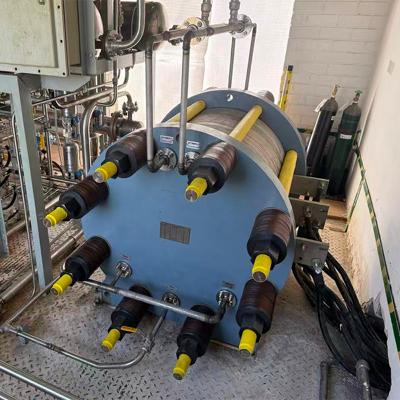

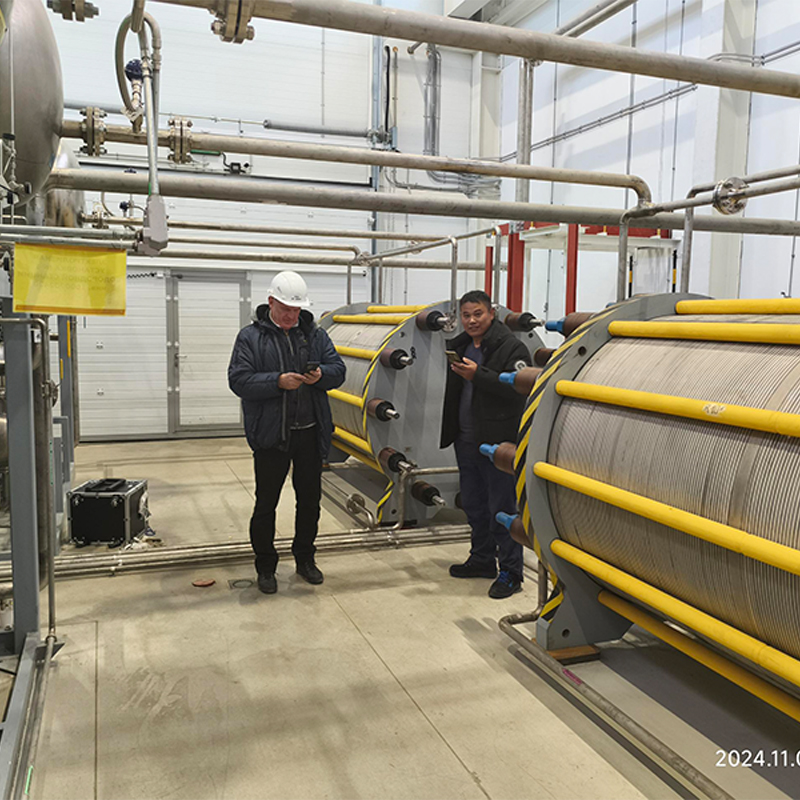

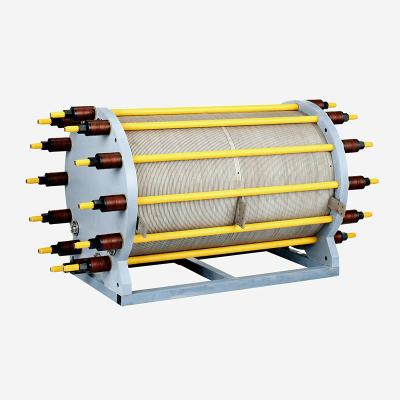

Hydrogen production equipment uses non-metallic pole frames to avoid galvanic corrosion problems. Non-asbestos type eliminates contaminationNo need to add vanadium pentoxide to the electrolysis tank, only KOH lye is requiredAdapts to renewable energy volatility; dynamic response of 20% - 110% in secondsNon-metal frame electrolytic cells are two-thirds smaller and one-half lighter than conventional metal frame electrolytic cells.Electrolyzer technology without electroplating, which greatly reduces production cycles and improves productperformance;environmentally friendly.A ten-year electrical failure rate of less than 5%.

Hydrogen production equipment uses non-metallic pole frames to avoid galvanic corrosion problems. Non-asbestos type eliminates contaminationNo need to add vanadium pentoxide to the electrolysis tank, only KOH lye is requiredAdapts to renewable energy volatility; dynamic response of 20% - 110% in secondsNon-metal frame electrolytic cells are two-thirds smaller and one-half lighter than conventional metal frame electrolytic cells.Electrolyzer technology without electroplating, which greatly reduces production cycles and improves productperformance;environmentally friendly.A ten-year electrical failure rate of less than 5%.

The air separation device is a set of deep-freezing method to extract liquid nitrogen from the air. The process adopts the deep freezing circulation principle of the low pressure turbine expander to make the air into a liquid state. Then, according to the boiling point of liquid oxygen and nitrogen, the air is rectified in the fractionator to obtain more than 99.99% liquid nitrogen.

BangWin's PSA Nitrogen Generator equipment has low energy consumption and low operation cost.It is convenient to adjust the nitrogen purity. The nitrogen purity is only affected by the nitrogen exhaust volume. Thepurity of ordinary nitrogen making machine can be adjusted arbitrarily between 95% - 99.99%. The purity of high-purity nitrogen making machine can be adjusted arbitrarily between 99% - 99.999%. The equipment has high automation, fast gas production and can be unattended, lust press the button to start and shut down,and nitrogen can be produced within 10-15 minutes The equipment has the advantages of simple process flow, compact structure, small floor area and strong adaptability

BANGWIN Liquid nitrogen generator (liquid nitrogen machine) equipment consists of nitrogen generator(built-in or external), refrigeration equipment lt consists of three parts: equipment (gas liquefaction equipment) and Dewar tank The whole machine has one-button startup and automaticreplenishment.Liquid function, the equipment automatically starts when the liquid nitrogen inthe liquid nitrogen tank is lower than the set liquid level. Liquid nitrogen machine The manufacturing adopts the mixed working fluid throttling refrigeration principle to gradually cool nitrogenfrom ambient temperature to nitrogen.The saturated condensation temperature of gas lique.faction, the lowest cooling temperature of the refrigerator can reach -196°C, and the systemwill The liquefied liquid nitrogen in the cold evaporator is transported to the liquid nitrogen tankfor storage to obtain liquid nitrogen, and the equipment automatically detects it.Liquid nitrogenlevel in the Dewar tank.

BangWin's PSA Nitrogen Generator equipment has low energy consumption and low operation cost.It is convenient to adjust the nitrogen purity. The nitrogen purity is only affected by the nitrogen exhaust volume. Thepurity of ordinary nitrogen making machine can be adjusted arbitrarily between 95% - 99.99%. The purity of high-purity nitrogen making machine can be adjusted arbitrarily between 99% - 99.999%. The equipment has high automation, fast gas production and can be unattended, lust press the button to start and shut down,and nitrogen can be produced within 10-15 minutes The equipment has the advantages of simple process flow, compact structure, small floor area and strong adaptability
