China Factory Oxygene Hydrogen Generator

CHR series applies complementary powersupply from wind energy, solar energy andelectricityatnighttoproducehydrogen.Then,using metal hydrogen storage technology orcompressedhydrogenstoragetechnologytostore this hydrogen. If lack of electricity, usercan use hydrogen fuel cell to converthydrogen to electricity by configuring DCIACconverter. If hydrogen fuel filling stationneeded,user can configure hydrogenboostingsystemtofillhydrogenintohydrogenfuel cell car, drone, bus, truck, electricvehicleandforklift.

The equipment uses water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen 1 oxygen tank, to ensure the hydrogen purity. It will go through the processes such as hydrogen washing, gas I liquid separation,cooling, purifying deoxidization and dryprocess to produce high purity hydrogen.

The equipment use water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen oxygen tank, to ensure the hydrogen purity.It will go through the processes such ashydrogen washing, gas / liquid separation and cooling process to finally produce hydrogen.

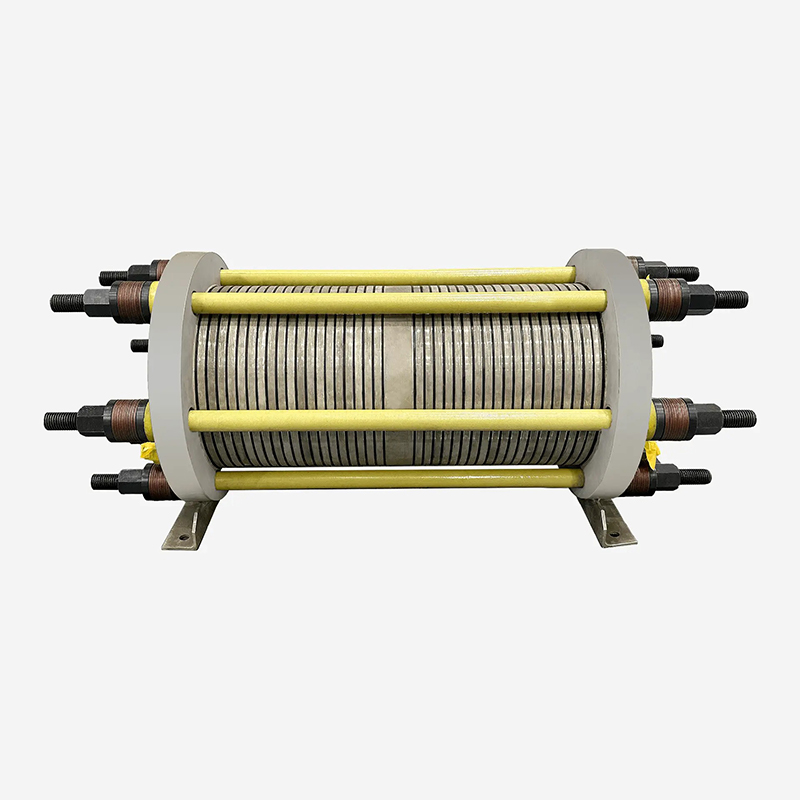

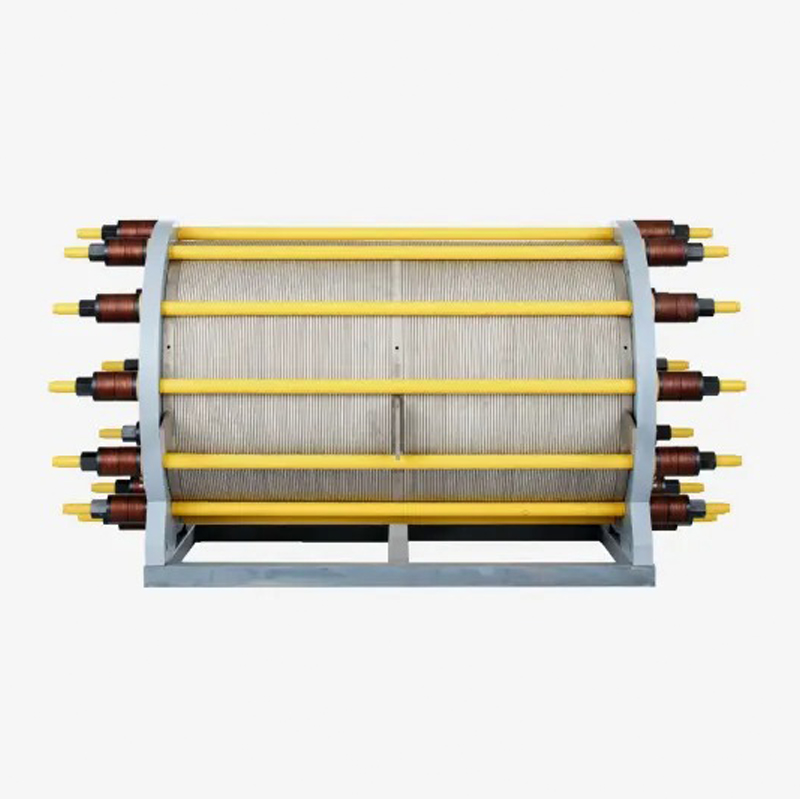

Hydrogen production equipment uses non-metallic pole frames to avoid galvanic corrosion problems. Non-asbestos type eliminates contaminationNo need to add vanadium pentoxide to the electrolysis tank, only KOH lye is requiredAdapts to renewable energy volatility; dynamic response of 20% - 110% in secondsNon-metal frame electrolytic cells are two-thirds smaller and one-half lighter than conventional metal frame electrolytic cells.Electrolyzer technology without electroplating, which greatly reduces production cycles and improves productperformance;environmentally friendly.A ten-year electrical failure rate of less than 5%.

BangWin's PSA Oxygen Generator equipment compact layout, module design, convenient transportation, save the site. It covers a small area. Easy to install, customers only need to connect the power supply and three pipes. And our equipment appearance beautiful atmosphere. The device is properly configured. Strict process control. Free wearing parts at random. Every device is turned on and tested before delivery. BangWin's PSA Oxygen generator oxygen purity can be reached 93±3%.Molecular sieve service life is more than 10 years, PLC control cabinet for Siemens PLC, built-in imported gas distribution system, ESG stainless steel pneumatic valve, automatic follow-up pressing device, touch screen display control: oxygen concentration, flow, pressure real-time display, concentration historical data storage display. BangWin's PSA Oxygen Generator equipment adopts oil-free design, does not contact with the compression medium, avoid the pollution of the gas in the compression process, to ensure the purity of the gas body, microcomputer controller control, high level of automation.

KDON (Ar)-16000/20000-520 The device has low energy consumption, stable performance and strong adaptability; fast gas production, high output and high purity; the overall skid-mounted structure is easy to install, use, occupy space, easy to operate, and intelligent. Customers can customize according to their needs

The air enters the air compressor after removing dust and mechanical impurities through the air filter, compressing to the required pressure, and outputting clean compressed air after strict purification treatment of oil, water and dust removal, with the purpose of ensuring the service life of the molecular sieve in the adsorption tower. There are two adsorption towers with carbon molecular sieves, one tower works while the other tower is decompressed and desorbed. The clean air enters the working adsorption tower, passing through the molecular sieve when oxygen, carbon dioxide and water are adsorbed by it, the gas flowing to the exit end is nitrogen and trace amounts of argon and oxygen. Another tower (desorption tower) so that the adsorbed oxygen, carbon dioxide and water from the molecular sieve pores out of the discharge to the atmosphere. In this way, the two towers take turns to complete the separation of nitrogen and oxygen, continuous output of nitrogen, variable pressure (_bian4 ya1) adsorption nitrogen purity of 95%-99.9%, if you need a higher purity of nitrogen need to increase the nitrogen purification equipment. Variable pressure adsorption nitrogen machine output of 95%-99.9% nitrogen into the nitrogen purification equipment, while adding the appropriate amount of hydrogen through a flow meter, in the purification equipment in the oxygen removal tower hydrogen and nitrogen in the trace oxygen catalytic reaction to remove oxygen and then cooled by the water condenser, vapor separator to remove water, and then through the dryer depth drying removal.

Our process flow 1,Methane + pure oxygen burn to generate CO2 and H2，O22,Then remove water3,Then lower the temperature of CO2 for preliminary liquefaction4,Then distill to obtain high-purity liquid CO25,Then store in liquid CO2 storage tank for future use
