The equipment use water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen oxygen tank, to ensure the hydrogen purity.It will go through the processes such ashydrogen washing, gas / liquid separation and cooling process to finally produce hydrogen.
Brand:
BANGWINItem no.:
BWOProduct origin:
ChinaLead Time:
1-4 Months1.Apply Scope
CHO series hydrogen equipment uses water electrolysis to generate pure hydrogen and pure oxygen.
It makes hydrogen outlet purity up to 99.8% and hydrogen outlet pressure up to 4.0Mpa.
This equipment suits for lower requirements for hydrogen purity.
We can make the appointed hydrogen equipment according to the client's needs.
2.Structure Characteristics

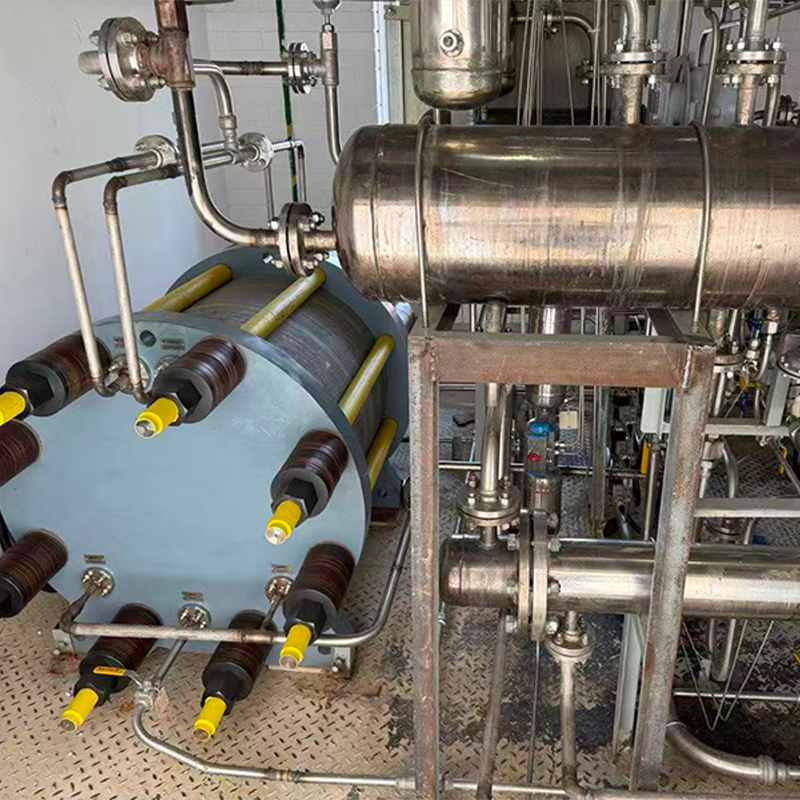

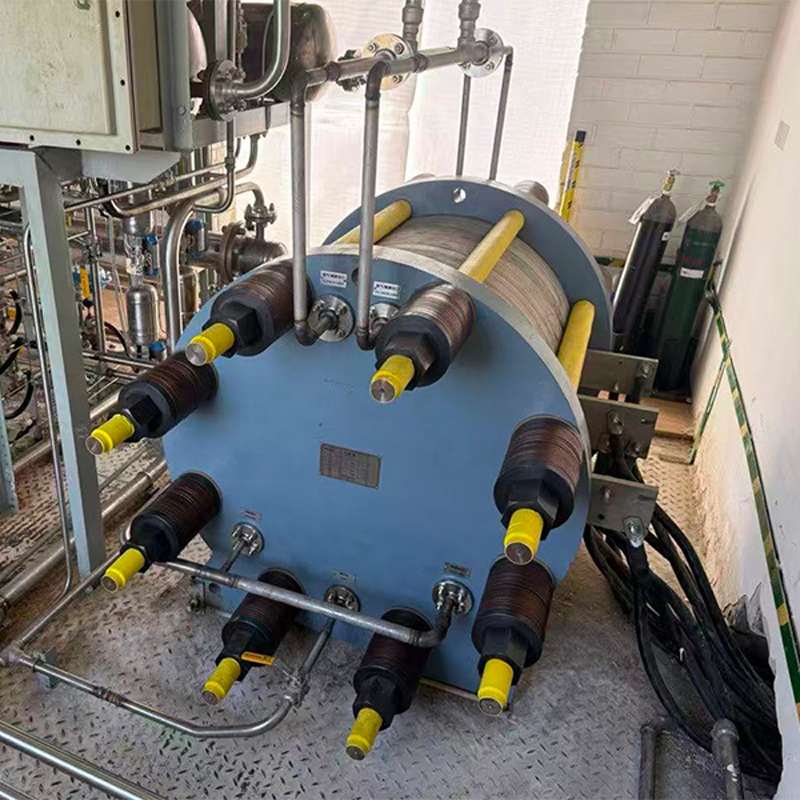

1. electrolytic cell: Use special material for polar frame. It solves problem of electrocorrosion and prolong the lifetime of
electrolysis cell. The cell uses non- asbestos membrane.

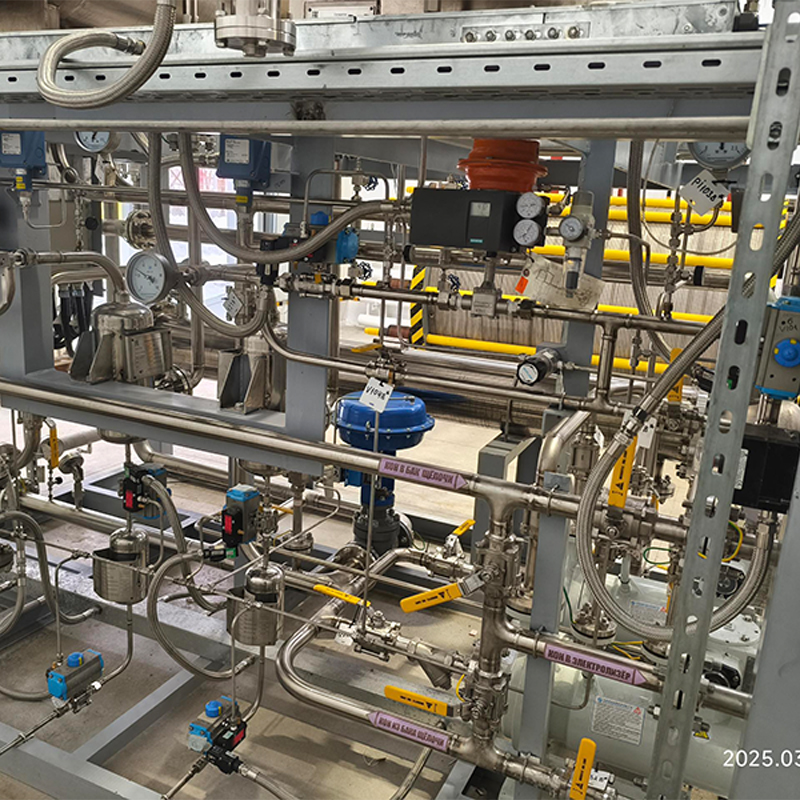

2. Gas / liquid separator: simplifies the previous product structure, makes space smaller and better effects of gas / liquid
separator.
3. Explosion-proof design: all the parts are designed as explosion-proof. Clients can choose the appointed brand parts
if theyrequired.
4. Cabinet: one integrated cabinet, containerizing or disassemble according to the client's requirements.
Note: Model below CHO-100, the equipment can be designed in containerizing cabinet. Model above CHO- 100, the
electrolytic tank needs to be placed alone and gas / liquid separator can be designed in containerizing cabinet.
3.Technical Specification
| MODEL |
(Nm3/h) H2 CAPACITY |
(Nm3/h) O2 CAPACITY |
H2 PURITY |
O2 PURITY |
(A) CURRENT |
(V) DC VOLTAGE |
CELL WORKING TEMPERATURE | TOTAL WATER CONSUMPTION |
TOTAL POWER SONSUMPTION |
| CHO-1 | 1 | 0.5 | 99.8% | 99.3% | 250 | 21 | ≤85% | 1L/h | 7Kw*h |
| CHO-5 | 5 | 2.5 | 99.8% | 99.3% | 250 | 100 | ≤85% | 5L/h | 27Kw*h |
| CHO-10 | 10 | 5 | 99.8% | 99.3% | 250 | 200 | ≤85% | 10L/h | 52Kw*h |
| CHO-15 | 15 | 7.5 | 99.8% | 99.3% | 960 | 78 | ≤85% | 15L/h | 78Kw*h |
| CHO-20 | 20 | 10 | 99.8% | 99.3% | 960 | 105 | ≤85% | 20L/h | 105Kw*h |
| CHO-30 | 30 | 15 | 99.8% | 99.3% | 960 | 156 | ≤85% | 30L/h | 155Kw*h |
| CHO-50 | 50 | 25 | 99.8% | 99.3% | 960 | 260 | ≤85% | 50L/h | 260Kw*h |
| CHO-75 | 75 | 37.5 | 99.8% | 99.3% | 960 | 392 | ≤85% | 75L/h | 382Kw*h |
| CHO-100 | 100 | 50 | 99.8% | 99.3% | 3000 | 168 | ≤85% | 100L/h | 512Kw*h |
| CHO-150 |
150 | 75 | 99.8% | 99.3% | 3000 | 252 | ≤85% | 150L/h | 764Kw*h |
| CHO-200 |
200 | 100 | 99.8% | 99.3% | 3000 | 334 | ≤85% | 200L/h | 1012Kw*h |
| CHO-250 |
250 | 125 | 99.8% | 99.3% | 3000 | 400 | ≤85% | 250L/h | 1212Kw*h |
| CHO-300 |
300 | 150 | 99.8% | 99.3% | 3000 | 501 | ≤85% | 300L/h | 1515Kw*h |
| CHO-350 |
350 | 175 | 99.8% | 99.3% | 3000 | 585 | ≤85% | 350L/h | 1760Kw*h |
| CHO-400 |
400 | 200 | 99.8% | 99.3% | 3000 | 700 | ≤85% | 400L/h | 2115Kw*h |
| CHO-500 |
500 | 250 | 99.8% | 99.3% | 7300 | 343 | ≤85% | 500L/h | 2520Kw*h |
| CHO-600 |
600 | 300 | 99.8% | 99.3% | 7300 | 390 | ≤85% | 600L/h | 2860Kw*h |
| CHO-700 |
700 | 350 | 99.8% | 99.3% | 7300 | 481 | ≤85% | 700L/h | 3525Kw*h |
| CHO-800 |
800 | 400 | 99.8% | 99.3% | 7300 | 550 | ≤85% | 800L/h | 4040Kw*h |
| CHO-900 | 900 | 450 | 99.8% | 99.3% | 7300 | 619 | ≤85% | 900L/h | 4540Kw*h |
| CHO-1000 | 1000 | 500 | 99.8% | 99.3% | 7300 | 686 | ≤85% | 1000L/h | 5030Kw*h |
