Hydrogen production equipment uses non-metallic pole frames to avoid galvanic corrosion problems. Non-asbestos type eliminates contamination
No need to add vanadium pentoxide to the electrolysis tank, only KOH lye is required
Adapts to renewable energy volatility; dynamic response of 20% - 110% in seconds

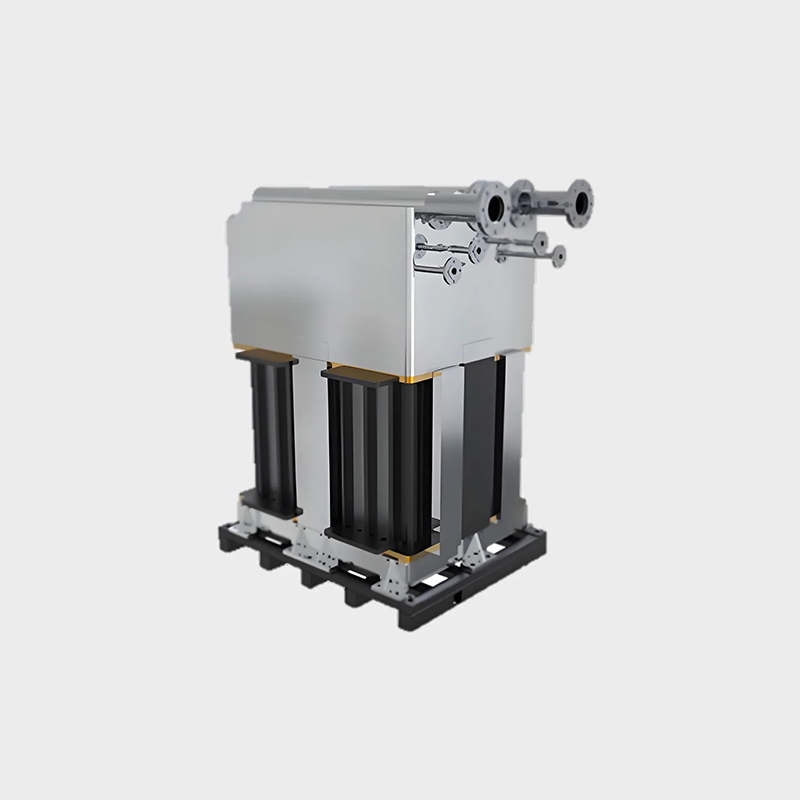

Non-metal frame electrolytic cells are two-thirds smaller and one-half lighter than conventional metal frame electrolytic cells.
Electrolyzer technology without electroplating, which greatly reduces production cycles and improves product
performance;environmentally friendly.
A ten-year electrical failure rate of less than 5%.
Brand:
BANGWINItem no.:
BWCProduct origin:
ChinaLead Time:
1-4 Months1.Apply Scope
CHV series mobile hydrogen fueling station is designed according to client' S need, this series can be easily changed to
another workplace.

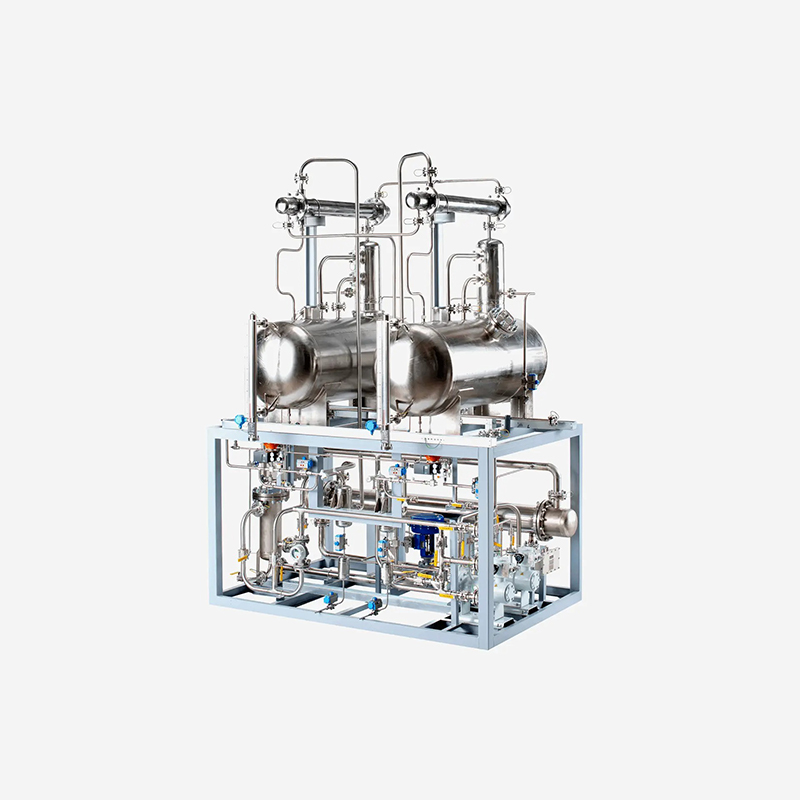

It includes water electrolysis hydrogen equipment, medium pressure storage tank and hydrogen fueling system.
It applies for the areas where is lack of hydrogen gas. The equipment uses water and electricity to generate pure
hydrogen and pure oxygen, the hydrogen purity can reach to 99.9999% and dew point up to - 75C.
This hydrogen can be used for hydrogen fuel cell drone, car, forkit, van, bus fueling.
2.Structure Characteristics
1.All the parts which contain hydrogen have explosion- proof treatment. Neither the storage tanks nor electrical system
have insulated from the hydrogen environment.
2.Reliable and easy PLC control system to operate the whole equipment. It ensures safety of using high pressure hydrogen.
3.It can be designed as outdoor style and indoor style.
System Flow:
Hydrogen Producing- →Medium Pressure Hydrogen Storage- →Hydrogen Pressure Boosting- →High Pressure Hydrogen
Storage- +Hydrogen illing
3.Technical Specification
| MODEL |
(Nm3/h) H2 CAPACITY |
(Nm3/h) O2 CAPACITY |
H2 PURITY |
(A) CURRENT |
(V) DC VOLTAGE |
CELL WORKING TEMPERATURE | TOTAL WATER CONSUMPTION |
TOTAL POWER SONSUMPTION |
| CHV-4 |
4 |
2 |
99.99% |
760 |
40 |
≤85% |
6L/h |
25Kw*h |
| CHV-10 |
10 |
5 |
99.99% |
760 |
78 |
≤85% |
12L/h |
56Kw*h |
| CHV-20 |
20 |
10 |
99.99% |
1240 |
90 |
≤85% |
22L/h |
110Kw*h |
| CHV-50 |
50 |
25 |
99.99% |
1800 |
138 |
≤85% |
55L/h |
236Kw*h |
| CHV-100 |
100 |
50 |
99.99% |
4600 |
118 |
≤85% |
110L/h |
508Kw*h |
| CHV-200 |
200 |
100 |
99.99% |
6600 |
150 |
≤85% |
200L/h |
1010Kw*h |
| CHV-300 |
300 |
150 |
99.99% |
6600 |
120 |
≤85% |
300L/h |
1510Kw*h |
