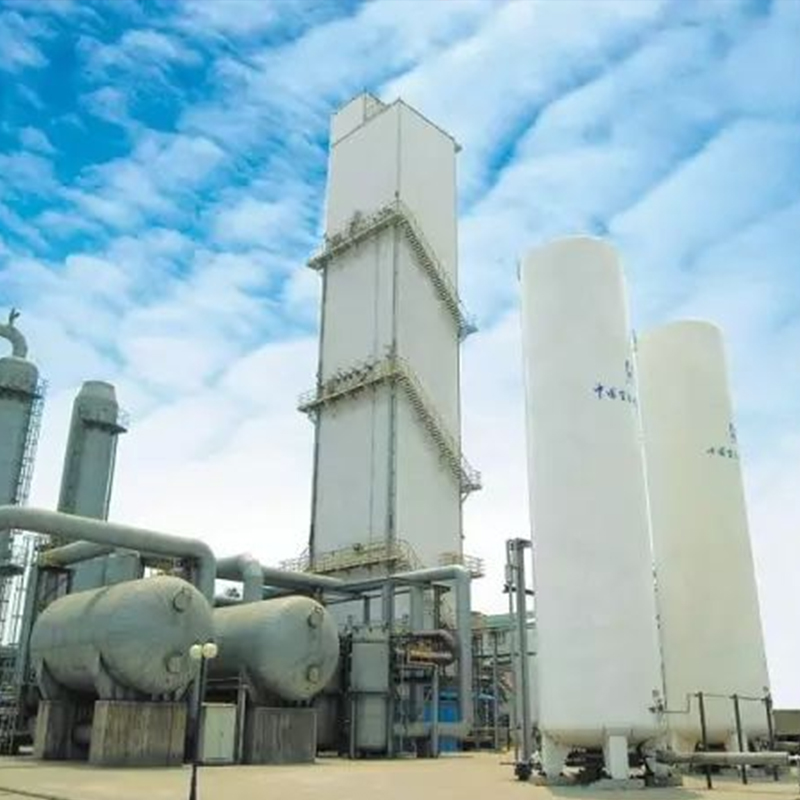

liquid oxygen liquid nitrogen generation equipment Air separation plant KDON(Ar)-20000/30000-650

KDON(Ar)-20000/30000-650 The air separation equipment of the invention is safe, high in efficiency, low in operating pressure, simple in operation, safe and reliable. The switching time of the molecular sieve device is longer, the life of the switching valve is longer, Effective in reducing safety hazards

  • Brand:

    BANGWIN
  • Item no.:

    KDON(Ar)-20000/30000
  • Product origin:

    China
  • Lead Time:

    1-4 Months
  • Product Detail

1.Air Separation Plant KDON(Ar)-20000/30000-650 Video Introduction




2. Machine Profile

Working principle

Fractionation tower heating, cooling, liquid accumulation and purification in one go, simple and fast operation. Using aluminium plate fin heat exchanger, aluminium convection sieve tower, the whole fractionation tower equipment pipeline using argon arc welding, cold box tower and the main pipeline, using high-strength aluminium alloy material or stainless steel material, in order to increase the strength, reduce the torsional damage of the pipeline. Cold box equipment bracket, pipeline and valve bracket should be used stainless steel or aluminium alloy material. The cold box is insulated with pearlescent sand and slag wool to ensure minimum cold loss. The structure of the cold box ensures the overall strength and requirements of earthquake and wind resistance to ensure the load-bearing capacity of the cold box; the cold box is equipped with sealed gas protection and safety devices during operation; the main equipment in the cold box is set up with electrostatic grounding; the cold valve and pipe connections in the cold box are all welded, avoiding the use of flange connections.



3.Characteristic



  • 1.Well-designed structure and well-designed piping
  • 2.Energy savings of 10% ~ 20%
  • 3.Easy to operate, easy to maintain
  • 4.Long service life
  • 5.Lifetime free maintenance
  • 6.Fast gas production
  • 7.Passed many international tests to meet safety standards


4.Supporting Unit

  • 1. Centrifugal air compressor
  • 2. Air precooling system
  • 3. Purification system
  • 4. Booster turbine expansion unit
  • 5. Distillation column system
  • 6. Liquid storage system
  • 7. Nitrogen compression system
  • 8.Oxygen compression system
  • 9. Instrument control system
  • 10. Electronic control system
  •  According to the needs of users, various specifications of gas products can be provided.



5.Technical Specification



Model

KDON (Ar)-11000/20000-300 KDON (Ar)-12000/24000-400 KDON (Ar)-13000/22000-350 KDON (Ar)-16000/20000-520 KDON (Ar)-18000/36000-600 KDON-20000/20000
02 Output (Nm3/h) 11000 12000 13000 16000 18000 20000
02 Purity (%O2) N99.6 N99.6 N99.6 N99.6 N99.6 N99.6
N2 Output (Nm3/h) 20000 24000 22000 20000 36000 20000
N2 Purity (PPm 02) 9.5 S10 S10 S10 S10 S10
Liquid Oxygen Ouput (Nm3/h) 800
Liquid nitrogen Ouput (Nm3/h) 300 400 350 520 600
Liquid argon Ouput (Nm3/h) 600
Consumption (Kwh/Nm3 02) S1.3 W0.85 S0.68 50.68 S0.65 S0.65
Occupied Area (m3) 140 150 160 180 250 420

 According to the needs of users, various specifications of gas products can be provided

Contact us to customise your own solution online





6.Producailst Det



The air separation equipment of the invention is safe, high in efficiency, low in operating pressure, simple in operation, safe and reliable. The switching time of the molecular sieve device is longer, the life of the switching valve is longer, Effective in reducing safety hazards
